RGB LED strips are a common decorative lighting product that has been widely used in homes and commercial places. The correct wiring method not only ensures the normal operation of the strips, but also improves safety and service life. Many friends plan to install the strips themselves, but they don't know how to wire them, which is a headache. Today, Aglare led strip lighting will introduce you in detail how to connect RGB LED strips. Connecting RGB LED strips involves multiple steps, including the connection of power supply, controller, and strip itself. The following is a detailed connection guide to help you correctly install and use RGB LED strips.
 |
 |
1. Prepare materials
•Power adapter: Select the appropriate power supply (usually 12V or 24V DC) according to the power of the strip.
•RGB controller: Used to adjust color and brightness, and supports multiple control methods (such as remote control, mobile phone APP, etc.).
•Connecting wires: Used to connect power supply, controller, and strips.
•Terminal connector or soldering tool: Used to fix the connection point.
•Distribution box or waterproof connector: used to protect the connection point, especially when used outdoors.
2. Connect the power supply and controller
a. Power connection
1. Connect the positive and negative poles: Connect the positive (+) and negative (-) poles of the power adapter to the corresponding ports of the controller respectively. Usually, the red wire is positive and the black wire is negative.
2. Secure the connection: Use terminal connectors or welding tools to ensure that the connection is firm, and wrap the connection point with insulating tape to prevent short circuit.
b. Controller connection
1. Connect the power input: Connect the positive and negative poles of the power adapter to the "DC IN" port of the controller.
2. Connect the signal line: Depending on the type of controller, connect the necessary signal line (such as PWM signal line). If it is a wireless controller, this step can be omitted.
3. Connect the RGB LED strip
a. Determine the connection point
1. Find the input end: Find the input end marked "IN" at one end of the strip, which usually has four wires of red, green, blue, and white (or three wires of red, green, and blue).
2. Connecting wires: Use connecting wires to connect the output of the controller (usually marked as "DC OUT") to the input of the light strip. Make sure the color of the connection corresponds:
• Red wire to red wire (positive)
• Green wire to green wire (G)
• Blue wire to blue wire (B)
• White wire to white wire (common negative)
b. Fixing connection points
1. Using terminal connectors or welding: Make sure all connection points are firm and use terminal connectors or welding tools to make connections.
2. Waterproofing: If used outdoors, be sure to waterproof the connection points with waterproof connectors or silicone sealant.
4. Testing and debugging
• Turn on the power: Turn on the power switch and check whether the light strip is working properly.
• Adjust settings: Adjust the color and brightness of the light strip through the controller to ensure that all functions are normal.
• Check connections: Carefully check all connection points to ensure that there is no looseness or short circuit.

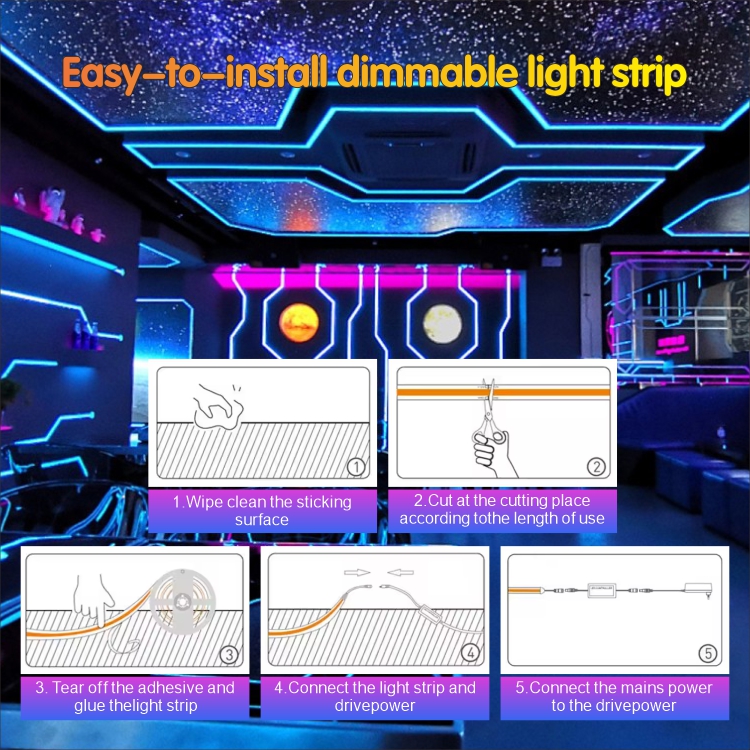

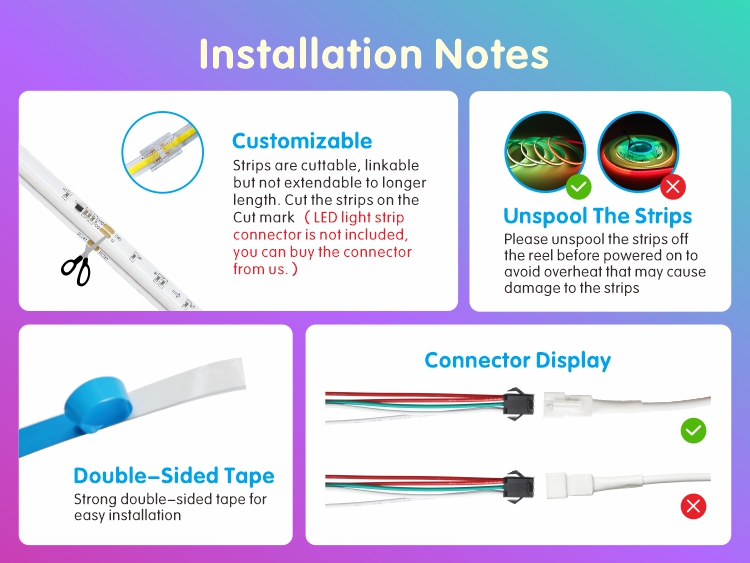

5. Installation and fixing
• Laying the light strip: Lay the light strip according to the design drawings and ensure that it is firmly fixed to avoid external forces.
•Hide the wires: Try to hide the wires in places that are not easy to see and keep them beautiful.
•Protect the connection points: Use waterproof connectors or distribution boxes to protect all connection points, especially in outdoor environments.
6. Precautions
•Avoid overload: Make sure the output power of the power supply is large enough to avoid damage to the power supply due to overload.
•Waterproof treatment: Especially when used outdoors, make sure all connection points are fully waterproofed.
•Safety first: During the connection process, be sure to disconnect the power supply to avoid electric shock accidents.
•Follow the specifications: Make sure the installation complies with local safety and electrical specifications.
Maybe you are looking for the best RGB LED light strip manufacturer supplier for your home, business, hotel, entertainment venue, etc. Or, you are just replacing outdated LED light strips. Whether it is shopping malls, commercial stores, bars, bedrooms and cabinet lighting decorations, Aglare LightingLED light strips can provide solutions to meet different needs.

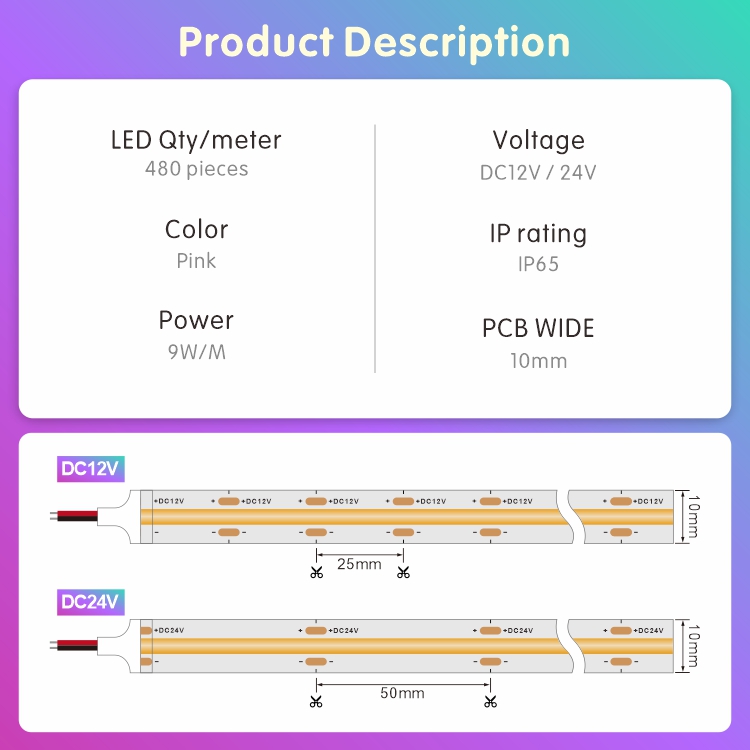

Aglare Lighting is a manufacturer and supplier of LED lighting and LED light strips. We produce many different models of 12V 24V LED strips, RGB LED strips,cob LED strips, smd2835 LED strips, 5050 RGB LED strips, 3528 LED strips, 3014 LED strips, 3020 LED strips, 5730 LED strips, addressable LED strips, programmable LED strips, DC12V 24V LED strips warm white 3000K 4000K 6000K LED strips linear dimmable. LED strips come in a variety of colors, densities, lengths, and weatherproof ratings to suit any indoor or outdoor need. Aglare led strip lighting
Why choose us?
1..We are the original manufacturer with more than 10 years of experience. You will get better advice from us.
2.Our factory covers an area of more than 20,000 square meters. All our workers are well trained. You will get better service and faster delivery time from us.
3. All our LED chips are from big brands such as CREE / Philips / Epistar / Sanan. You will buy better quality and more stable products from us.
4. We offer direct factory prices. By working with us, you will save your budget and even beat your local wholesalers, middlemen and retailers.
5. If you are a trader, wholesaler or contractor, we are your best choice!
In summary, through the above steps, you can correctly connect the RGB LED strip and ensure that it works properly. Make sure to choose the right power supply and controller, connect the various components correctly, and carry out sufficient waterproofing, especially when used outdoors. I hope this information can help you complete the installation smoothly and enjoy the colorful lighting effects. If you have any specific questions or need further help, please feel free to contact the manufacturer of the relevant product or a professional electrician.
