100W 8.33A DC12V 24V LED Strip Power Supply Transformer Switching Driver

Item Type: YJ100-W1V12

  • Item Type: YJ100-W1V12
  • Power: 100W
  • Output voltage: DC 12/24V
  • Input Voltage: AC 100V-240V
  • Output Current:8.33A/4.17A
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

100W 8.33A DC12V 24V LED Strip Power Supply Transformer Switching Driver for LED Strip light,LED light,CCTV,Radio,Computer Project,3D Printer

Technical Specifications:
Manual Switch between 110V and 220V Input.
+ / - 10% adjustable output voltage.
AC input: 90-130V; 180-265V.
DC Output: DC 12V 24V, 0 ~ 8.33A.
Auto on/off cooling fan.
High Efficiency, Low Temperature.
High reliability.
LED indicator for power on
Built-in EMI Filter.
Over Load and Short Circuit Protection.
Over Voltage Protection.
Auto-recovery after protection.
Product Parameters

12v power supply for led lights

 Model No： YJ100-W1V12
Power： 100W
Material： Aluminum
Input Voltage： AC 100V-240V
Output voltage:  DC12V/DC24V
Size： ‎129*98*40mm
Output current： 8.33A/4.17A
Lighting solutions service： Lighting and circuitry design
Adjustable Power Supply Type: Switch-Mode Power Supply
Protection： Short Circuit Protection
Working Temp:  -27-75
Power Factor： PF>0.95
IP Degree： IP22


led switching power supply
Applications:

This DC12V 24V LED Switch Power Supplyy, Widely used in LED bulbs, strip lighting, CCTV camera, 3D printers,Industrial automation, LED display, etc. With anti-jamming to ensures the long life LED lamps and reduce the LED luminous decay.

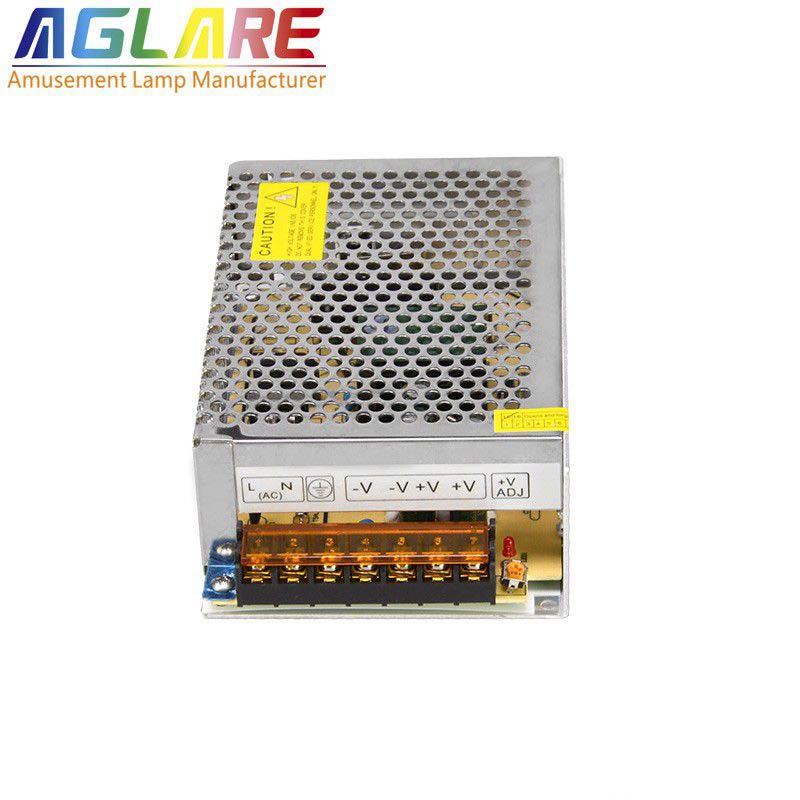

Wiring:
● L, N, GND: AC power input
● +V: DC power output "+"
● -V: DC power output "-"
● +V / ADJ: fine adjustment of output voltage
Working Temperature: 0~40℃
Humidity: 0~95% Non-Condensation
