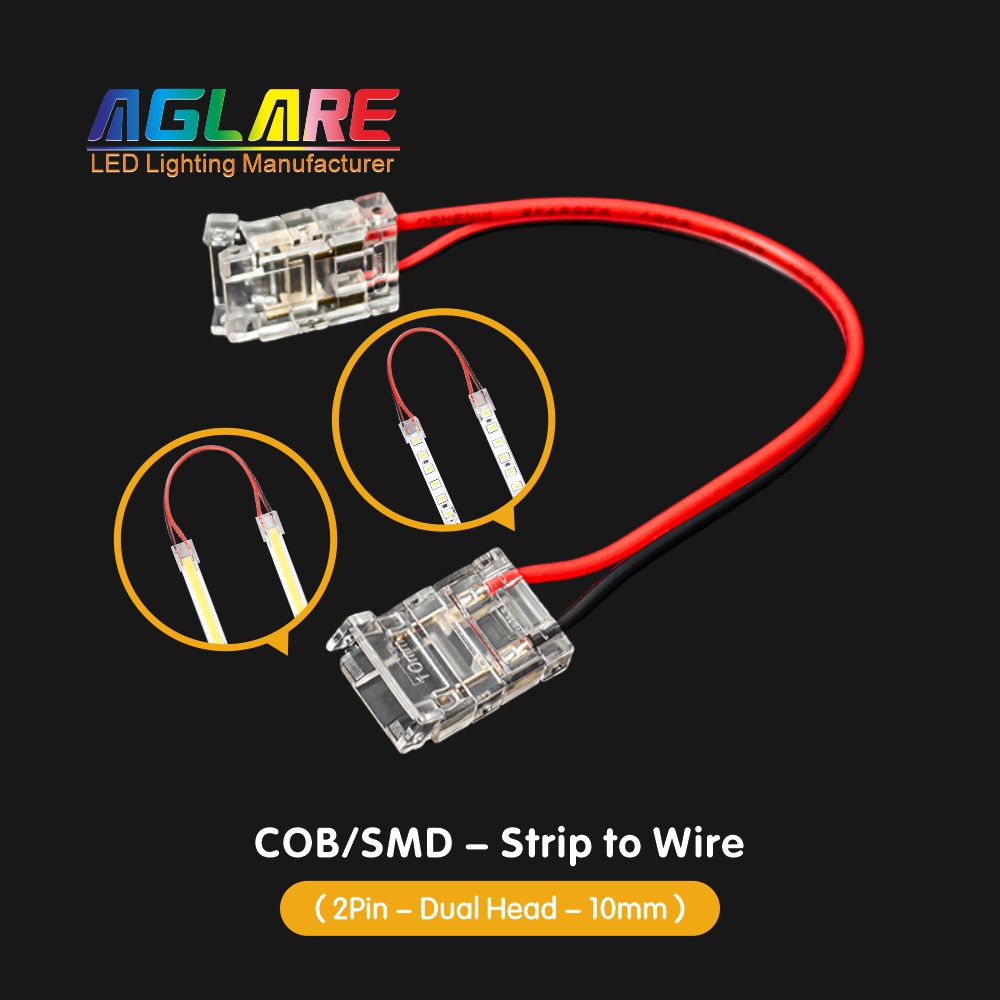

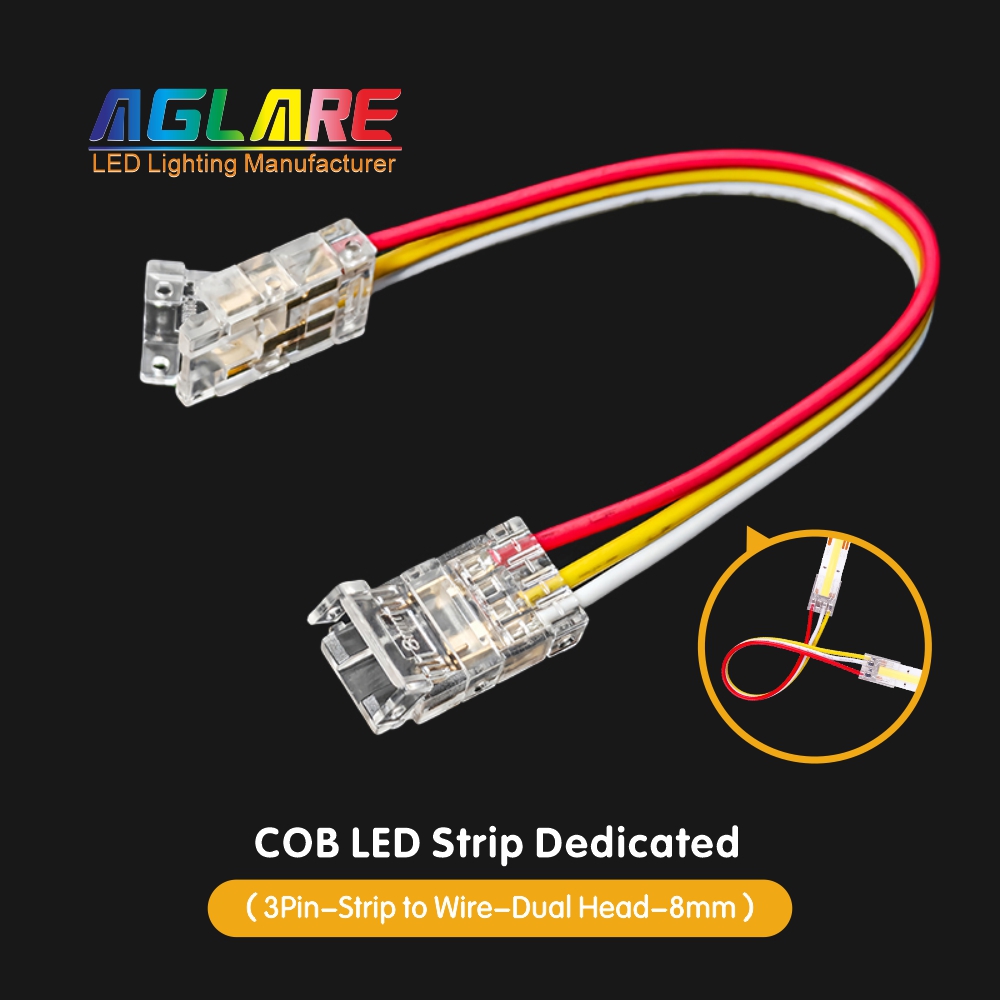

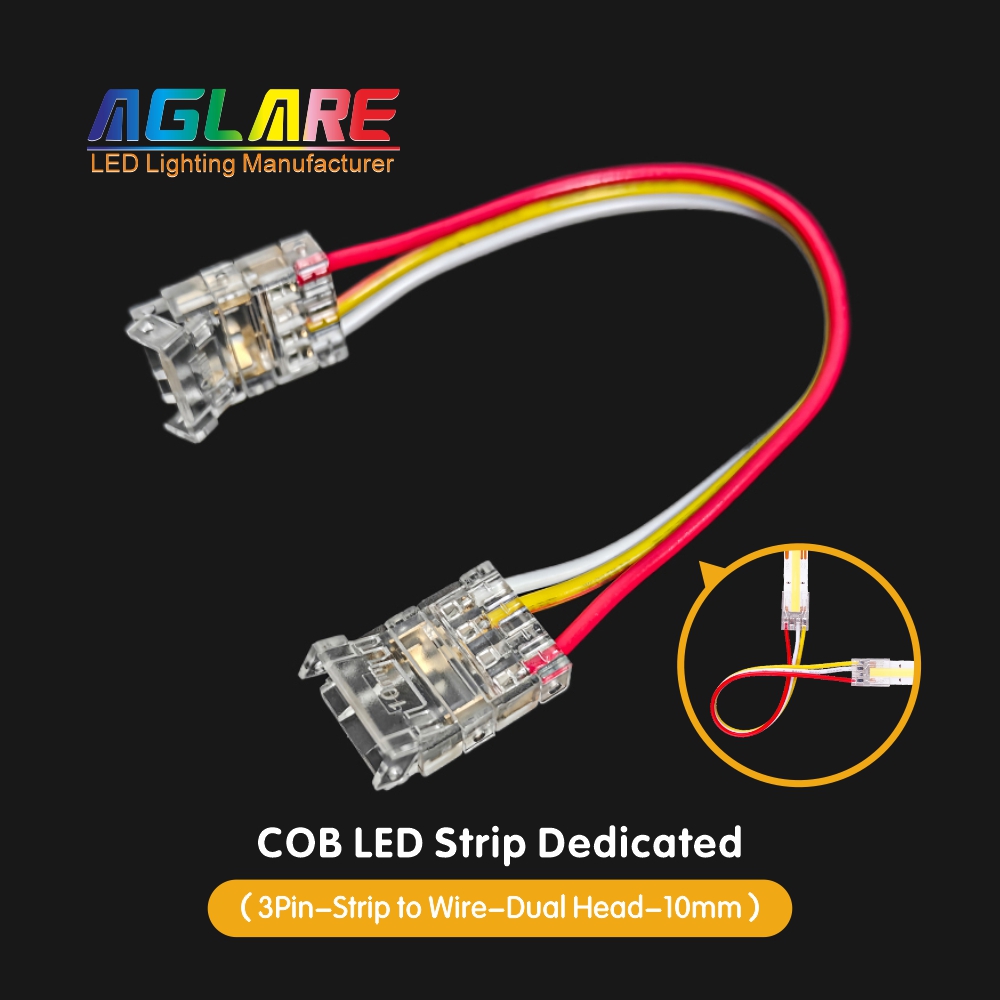

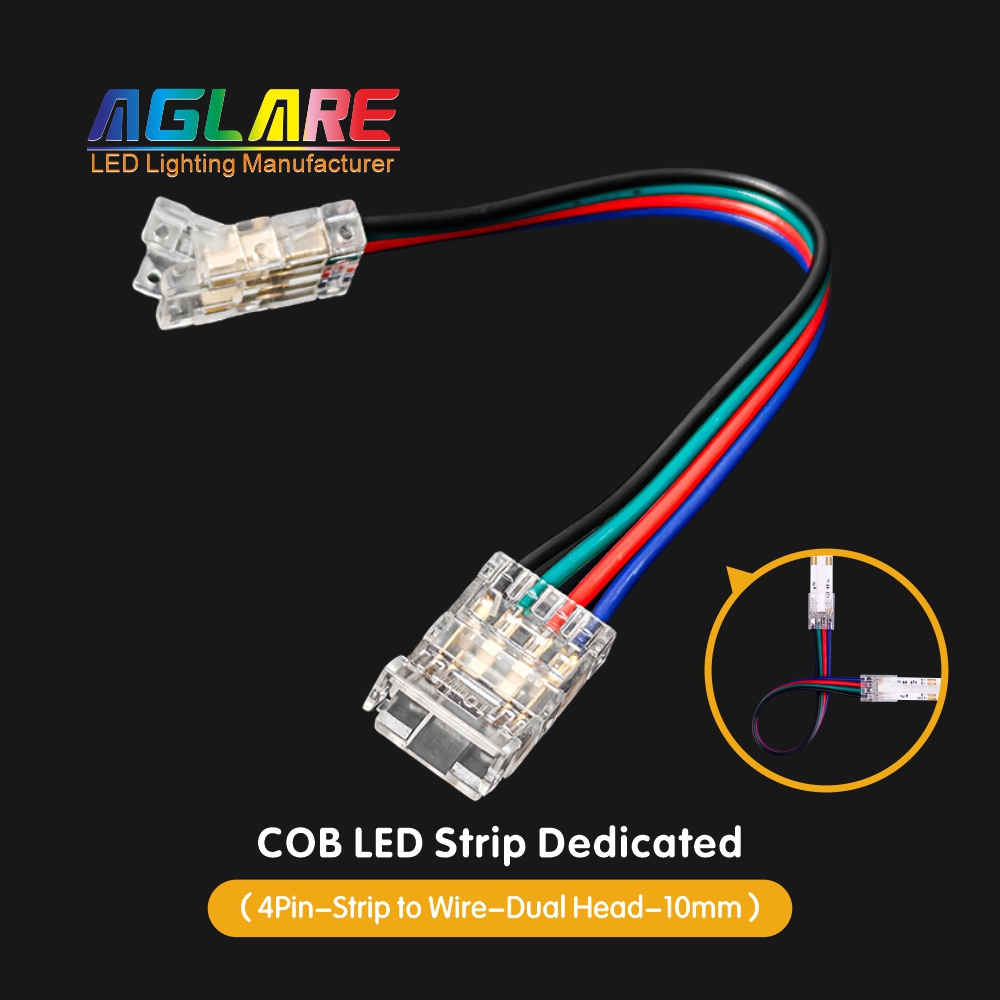

5/8/10mm COB LED Strip to Wire Connectors 2/3/4 Pin - Dual Head

Item Type: COB LED strip to wire connector

  • Item Type:COB LED strip to wire connector
  • Width: 5/8/10mm Optional
  • Connector Type: 2/3/4 Pin Optional
  • Max Voltage: 24V
  • Material: Copper, Polyvinyl Chloride
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

2pin 3pin 4pin COB LED Strip to Wire Connectors (Dual Head) for 5mm/8mm/10mm Width PCB Single Color RGB CCT Strip


COB LED Strip to Wire Connector Product Features：

1.Flexibility: The design of this COB LED Strip to Wire Connectors (Dual Head) is very flexible and can easily meet the installation needs of different angles and shapes.

2.Easy connection: Join LED tape to wire without soldering; Suitable for 5mm/8mm/10mm Width PCB Single Color RGB CCT LED strips.

3.High current capacity: Supports up to 6A current; Compatible with 5V, 12V, 24V LED strips; Enables longer LED strip connections with a single connector; Adjust extension distance and angle for board-to-wire input and strip-to-strip jumper configurations

4.Waterproof strip compatible: Remove silicon covering around solder area to connect waterproof LED strip lights; Expands lighting project possibilities

Product Parameters

Led Strip Connector

 Model No： COB LED strip to wire connector
Interface Type： 2/3/4 Pin Optional

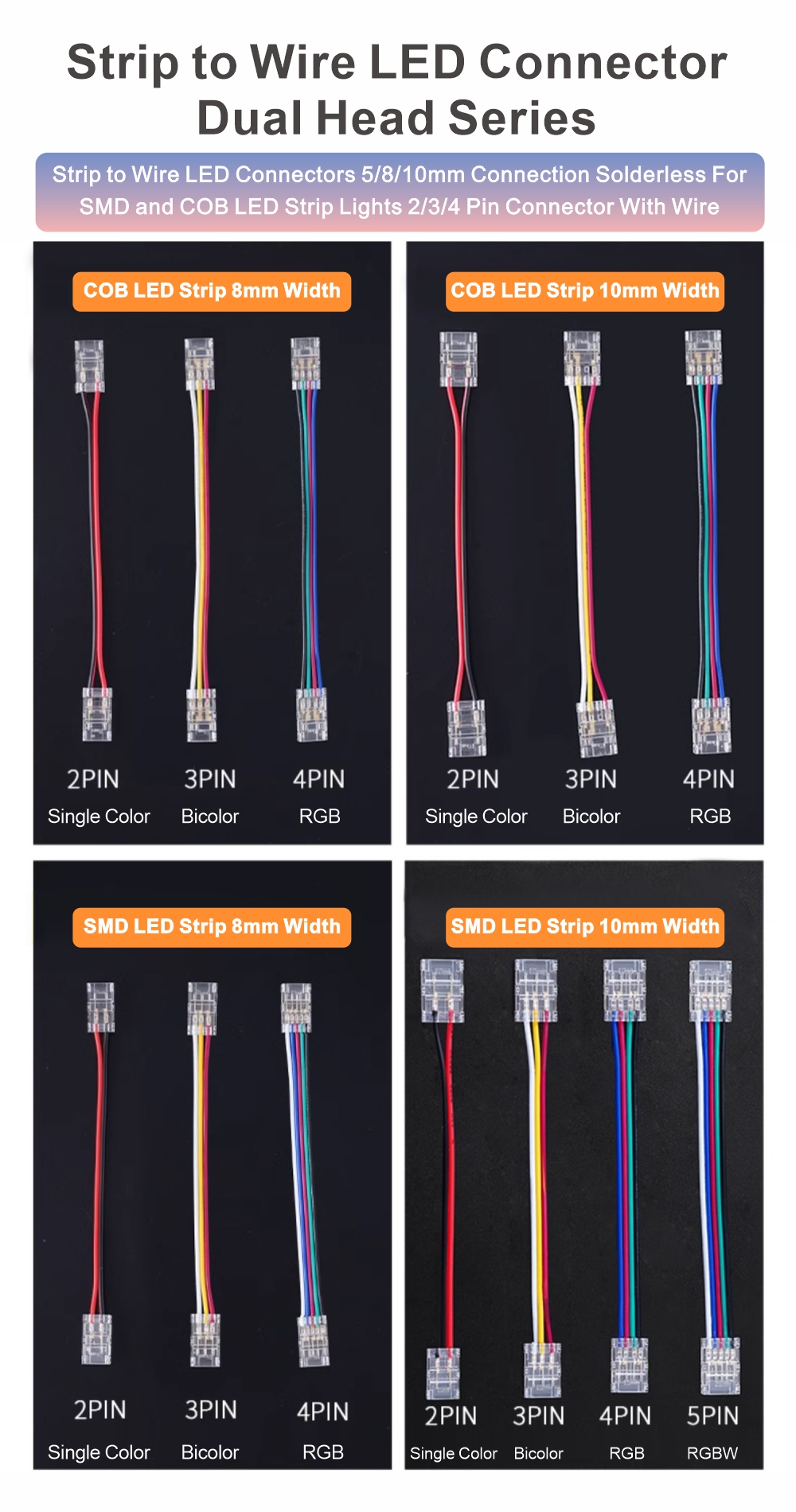

Connector Type： 2Pin-5mm/2Pin-8mm/ 2Pin-10mm/  3Pin-8mm/ 3Pin-10mm/ 4Pin-10mm/ COB-8mm/ COB-10mm
Max Voltage： 24V
Rated Current:  5A
Material： ‎Plastic
Main body material： Copper Core
Light colour： Transparent
Product name 1： COB LED Strip To Wire Connector 2 pin
Product name 2： COB LED Strip To Wire Connectors 3 pin
Product name 3： COB LED Strip To Wire Connector 4 pin
Product name 4： COB LED Strip to Wire Connector
Working Temperature:  -10℃ – 45℃


cob led strip light connectors
cob led strip connectors
cob led strip to wire connector
2 pin 8mm cob led strip to wire connector

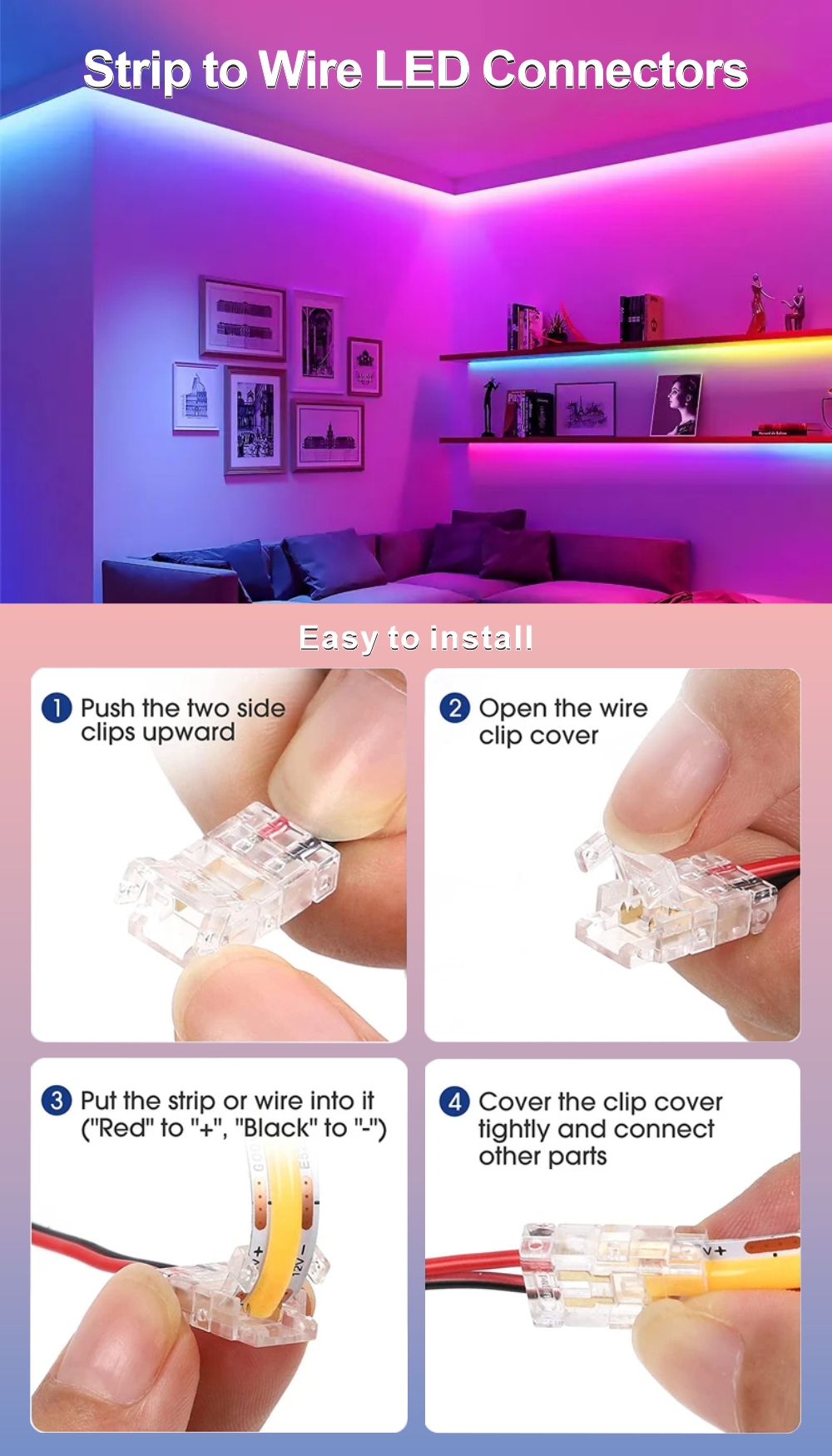

This connector allow you to cut any length wire according to project's actual requirement, then attach wire to connector easily without stripping insulation.
