Product DEtails

Home > Product > SMD LED Strip Lights > Addressable SMD LED Strip > Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable SMD LED Strip - Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable SMD LED Strip - Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable SMD LED Strip - Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable SMD LED Strip - Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable SMD LED Strip - Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable SMD LED Strip - Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs
  • Addressable SMD LED Strip - Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs

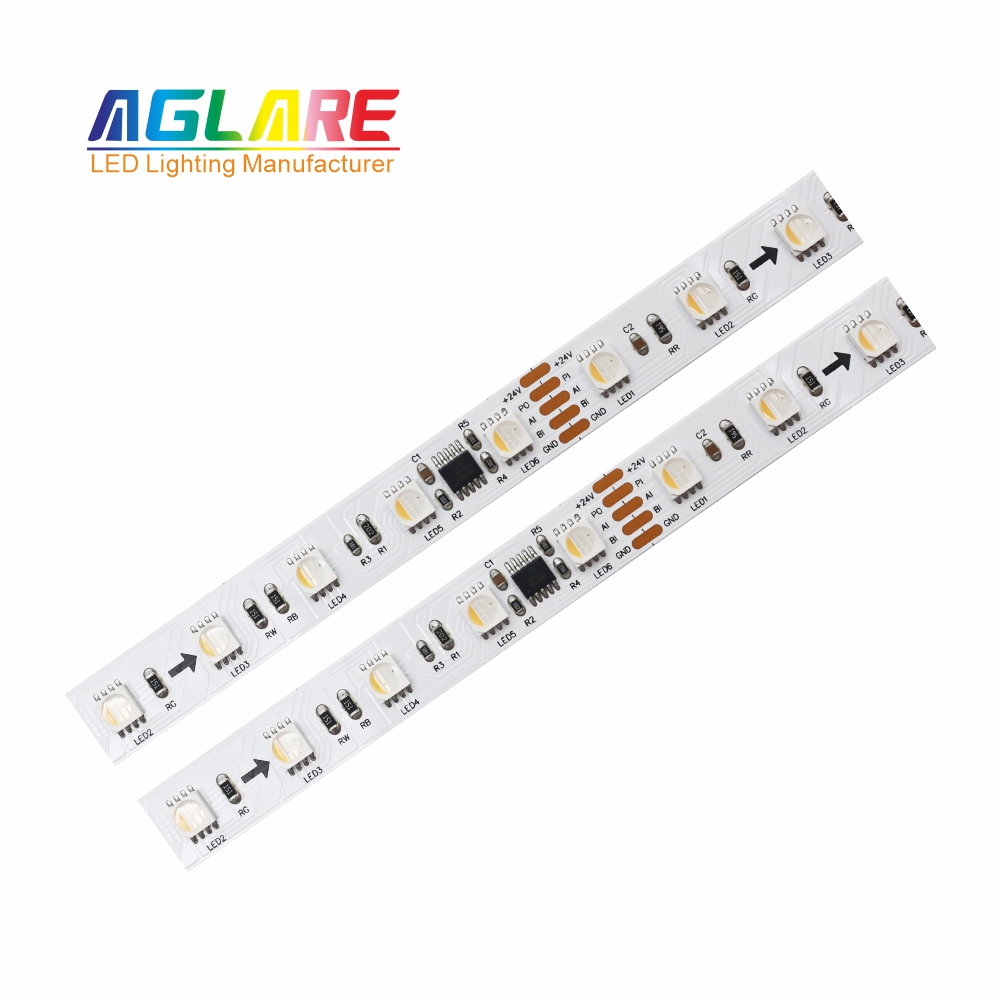

Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs

Item Type: ALS-5050S60RGB-F10

  • Item Type:ALS-5050S60RGB-F10
  • Strip type: SMD5050
  • Input Voltage: DC24V
  • Color Temperature: RGBW
  • LEDs Number/M: 60LEDs/M
  • Lamp Power(W): 12W/m
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

Addressable DMX512 LED Pixel Light Strip RGBW 5050 External IC TM512AC DC24V 60LEDs Programmable SMD5050 RGB Digital Led Strip

Get ready to add a touch of gorgeous illumination to your space with our high-quality addressable DMX512 Signal External IC TM512AC Flexible Full Color 24V Addressable LED strip. This innovative lighstrip comes with RGB digital technology and is designed with 5050SMD chips.

Product Features:

This LED strip is not just a standard LED strip. It comes with several impressive features:

1.SMD5050 RGB Chips: The LED strip uses 5050SMD RGB chips and features 60 SMDs per meter (nearly 3.28 feet).

2.Addressable DMX512 Digital LED Strips: Functionality is top-notch with our LED light strip. It employs the DMX512 signaling system, which supports polarity reversal of the output.

3.Parallel Signal Transmission: We use parallel signal transmission for DMX512, ensuring that even if one light fails, it does not affect the work and control of the other lights.

4.Customizable Length: The LED strip is tailor-made for your convenience. You can cut it along the dedicated cutting line to meet your specific requirements.

5.Dimmable Feature: The LED strip comes with a dimmable feature, further enhancing flexibility in use.

6.Wide Compatibility: This programmable LED strip is compatible with our collection of LED Pixel Controllers, allowing you easy control over brightness, color, speed.
Product Parameters

addressable led strip

 Model No： ALS-5050S60RGB-F10
Power： 12W/M
PCB width： 10mm/12mm
Input Voltage： DC24V
Is Smart Device:  YES
Light Direction： ‎Adjustable
LED Quantity： 60 LEDs/m
Color Temperature： Multicolor
Qty/Roll(m)： 5m/10m
Material： Copper
Storage temperature:  -20℃-+60℃
Occasion: DMX
Operation Temperature： -25℃-+45℃


addressable led strip
programmable led strip
dmx 512 led strip
dmx flexible 5050 led strip
rgb programmable led strip
Programmable DMX512 Pixel LED strip
pixel led strip light
addressable rgb led strip
Installation & Usage
Our addressable LED strip is extremely user-friendly and easy to install. It is perfect for home decoration, lighting up hotels, clubs and shopping malls, or adding a touch of glam to your events, shows or exhibitions. Use it for background lighting, concealed lighting, channel letter lighting, emergency and security lighting, advertisement sign lighting, or decorative lights for holiday/event.
programmable led strip for sale
Product Description:

Aglare LED Strip Lights The DMX512 Signal LED Pixel Strip Light RGBW RGBW 4 in 1 SMD 5050 External IC TM512AC facilitates the production of high-resolution linear pixel lighting solutions. The strip has the smallest cutting increment of any of our Pixel LED strip lights since each LED is cuttable. With one RGB LED per pixel, each five-meter reel contains 300 individually accessible LEDs. This allows lighting designers to precisely trim and manage the strip while remaining straightforward to integrate into a 24 VDC system. It has 60 high-quality RGB LEDs per meter and is 10mm wide, making it suitable for a variety of outdoor applications. We cordially encourage you to purchase or wholesale LED strip lights from our manufacturer.

Questions you may ask about 24 Volt Programmable Addressable LED Strip Lights

1.What is an addressable LED strip?

An addressable LED strip is an LED strip that can be controlled with a microcontroller. Addressable LED strips differ from standard LED strips in that they have many data lines, each of which can control a distinct color LED.


2.Can I cut this LED strip to any length I want?

Yes, the LED strip is designed to be cut along the dedicated cutting line.


3.What happens if one of the lights fails?

If one of the lights fails, it doesn't affect the rest. This is due to the parallel signal transmission system we use in the strip.


4.Can I control the speed and direction of the LED strip light?

Yes, by using our LED Pixel Controllers, you can easily control speed, brightness, and direction.


5.Can you Programmable LED strip lights?

There are hundreds of effects that can be created with addressable LED strips. Programming your LED strip allows you to choose which of these options you want to implement. Consider it as personalizing how your LED strips work rather than having them work randomly.
