Product DEtails

Home > Product > LED Accessories > LED Strip Power Supply > DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting
  • DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting
  • DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting
  • LED Strip Power Supply - DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting
  • LED Strip Power Supply - DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting
  • LED Strip Power Supply - DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting
  • LED Strip Power Supply - DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting

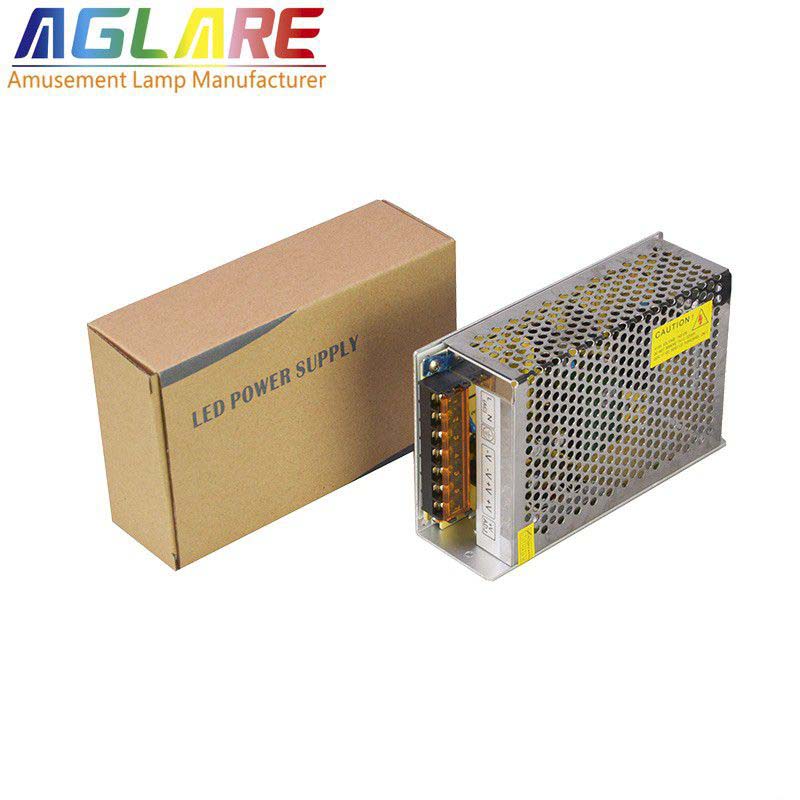

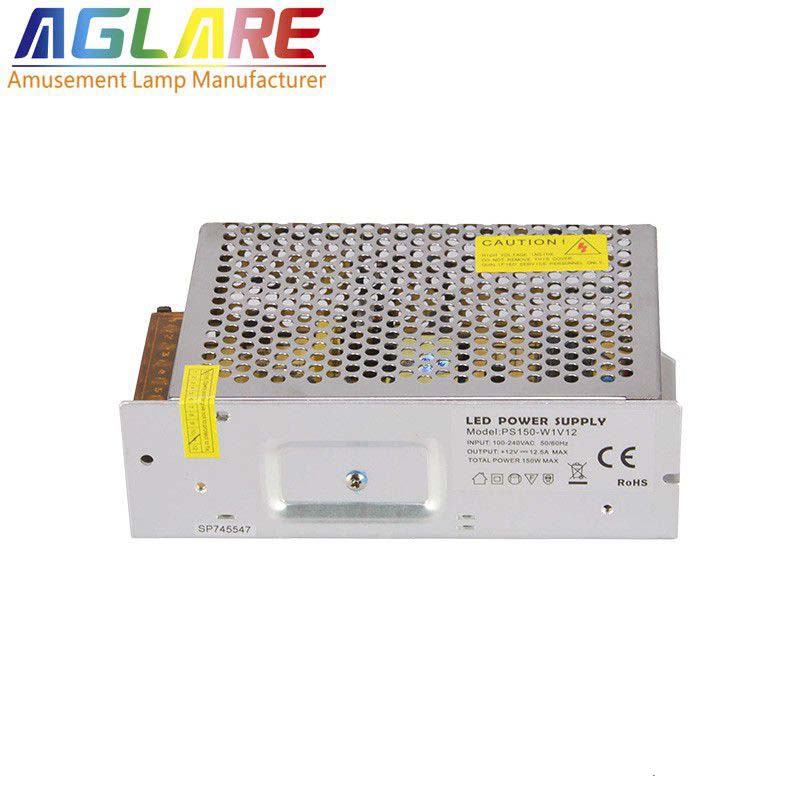

DC12V 24V 150W 12.5A LED Driver Power Supply Transformer Switching Driver for LED Strip Lighting

Item Type: YJ150-W1V12

  • Item Type: YJ150-W1V12
  • Power: 150W
  • Output voltage: DC 12/24V
  • Input Voltage: AC 100-240V
  • Output Current: 12.5A/6.25A
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

150W 12.5A DC12V LED Driver Power Supply Transformer Switching Driver for LED Strip CCTV Radio,Computer Project,3D Printer

Technical Specifications:
Manual Switch between 110V and 220V Input.
+ / - 10% adjustable output voltage.
AC input: 90-130V; 180-265V.
DC Output: DC 12V 24V, 0 ~ 12.5A.
Auto on/off cooling fan.
High Efficiency, Low Temperature.
High reliability.
LED indicator for power on
Built-in EMI Filter.
Over Load and Short Circuit Protection.
Over Voltage Protection.
Auto-recovery after protection.
Product Parameters

led power supply

 Model No： YJ150-W1V12
Power： 150W
Material： Aluminum
Input Voltage： AC 100-240V
Output voltage:  DC12V/DC24V
Size： ‎160*98.3*49.3mm
Output current： 12.5A/6.25A
Lighting solutions service： Lighting and circuitry design
Adjustable Power Supply Type: Switch-Mode Power Supply
Protection： Short Circuit Protection
Working Temp:  -27-75
Power Factor： PF>0.95
IP Degree： IP22


12v power supply for led lights
DC12V 24V Universal Regulated Switching Power Supply LED Transformer Connection:

The LED Transformer/Driver is used to power low voltage (12V/24V) LED bulbs strip lighting or any other DC 12V 24V devices.

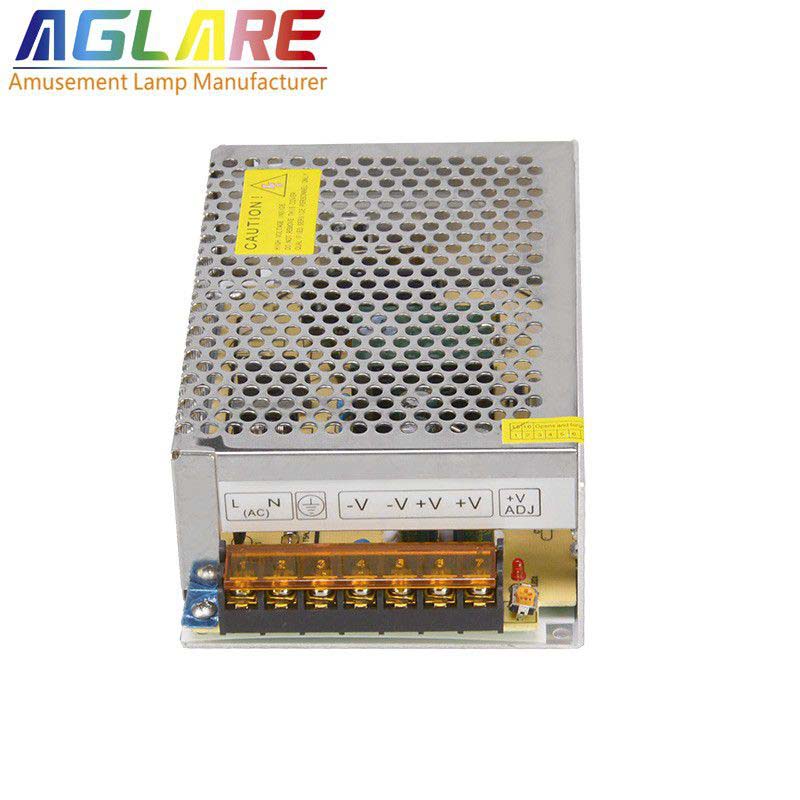

Wiring:

● L, N, GND: AC power input
● +V: DC power output "+"
● -V: DC power output "-"
● +V / ADJ: fine adjustment of output voltage
Working Temperature: 0~40℃
Humidity: 0~95% Non-Condensation
