RGBWC LED Controller Touch Panel DC 12V 24V 50A RF Universal Wireless Remote for 2835,5050,COB RGBW LED Strip Lights

Item Type: TOUCH-86- RGBWC

  • Item Type:TOUCH-86- RGBWC
  • Voltage: DC12-24V
  • Connection: Common Anode
  • Remote Distance: 5-10m
  • Connectivity Protocol: Wi-Fi
  • Control Method: Remote, Touch

Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

RGBWC LED Controller Touch Panel DC 12V 24V 50A (12V Max 480W，24V Max 960W) RF Universal Wireless Remote Distance Wall Mounted for 2835,5050,COB RGBW LED Strip Lights

Product  Specifications:
1. Voltage supply: DC12V-24V, 5V can be customized
2. Connection method: common anode
3. Power 12V*10A=120W
4. Remote control distance: 5-10 meters
5.Output : 5 COMS drain outputs
6.Connect mode : Common anode
7.Working Temperature : -20-60℃
8.Static power : <1W
9.Output current : <10A(each channel)
10.Output Power : 5VV<250W, 12V<600W, 24V<1200W
11.Working Temperature : -20-60℃

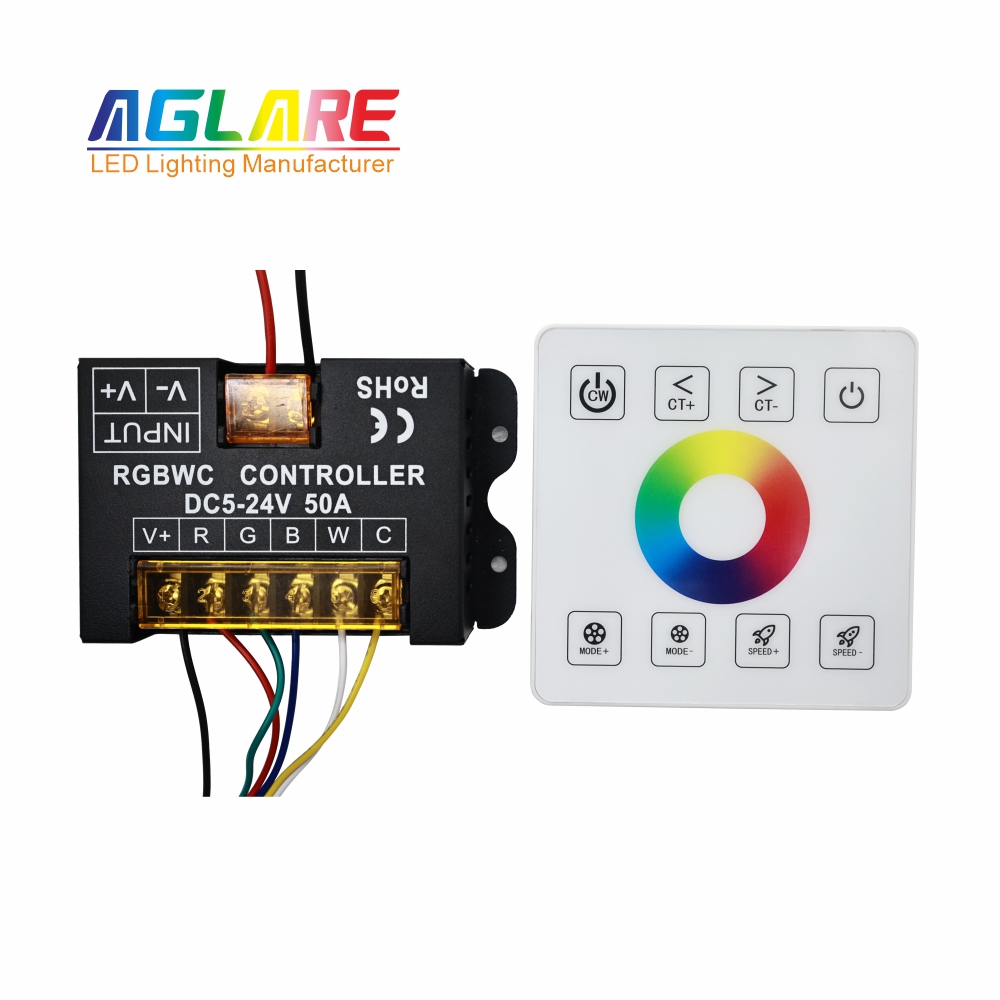

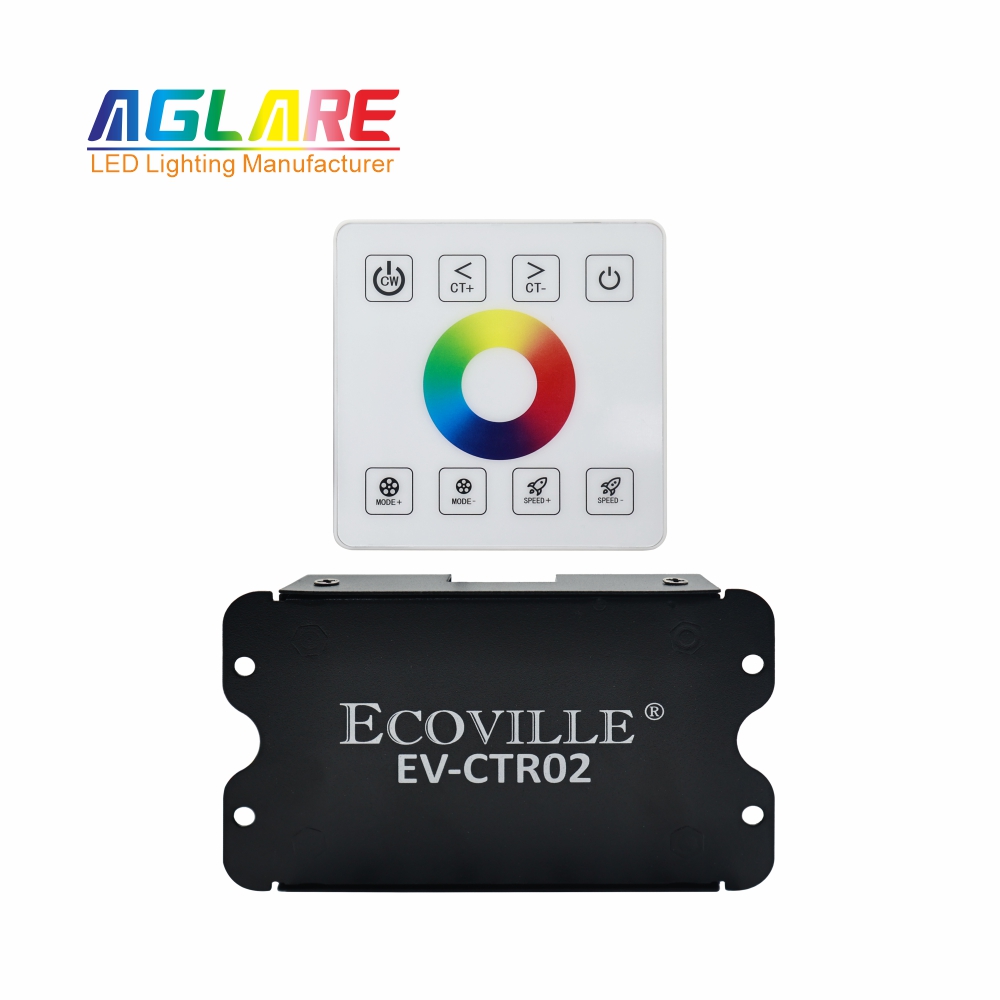

RGBWC (RGB+CCT) Touch panel controller
RGBW Touch panel controller
Controller size: L103*W62*H22mm
Remote control size: L86*W86*H12mm
led strip controller
led strip light controller
Product Description:

Check the RGB Touch panel controller,RGBW Touch panel controller, LED Strip RF Universal Wireless Remote Controlle,It is widely used in 5050RGBWC LED strip light and so on. The package comes with a complete set of remote controller and receiver, both are very convenient and easy to use.

With the technology of the RF 433Mhz high frequency wireless remote control, high speed telecommunications, strong anti-interference ability, remote distance up to 5-10M
Max Current Load: 10A*4CH, Max 50A. Max output power is 200Watt（5VDC） 480 Watt (12VDC), 960 Watt (24VDC).

RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other

According to the different needs of customers, you can choose dynamic lighting effects such as gradient, jump, fade, flicker, flash, etc. and a variety of static lighting options. Widely used in home decoration, shopping mall advertising, bar counters and other places
