SPI Controller for Addressable RGB/RGBW CI Pixel LED Strip Light DC 12V 24V

Item Type: RF4-2811

  • Item Type:RF4-2811
  • Input Voltage: DC12V/DC24V
  • Pre-set program number: 133
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

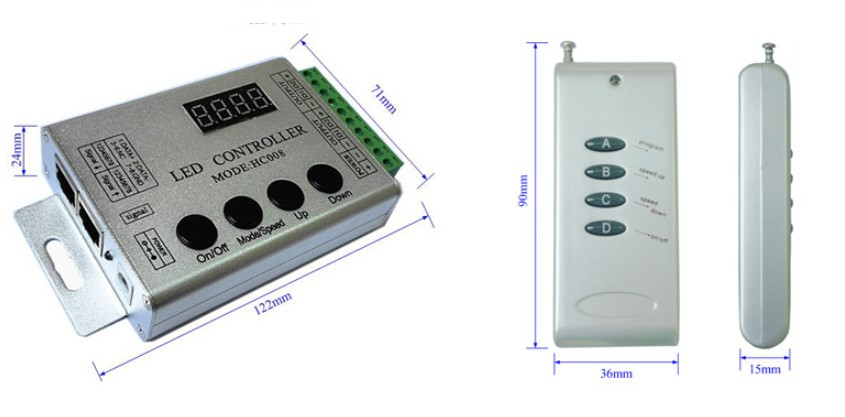

Aluminum Shell LED Controller 4 Key RF Wireless Remote Pixel SPI Controller for Addressable Dream Color RGB/RGBW  LED Strip Lights DC12-24V

Product  Specifications:
*Working Voltage: DC12V/24V Selectable
*Pre-set program number: 133
*Work for RGB/RGBW addressable pixel LED strip lights DC low voltage
 *Max control pixel number: 1020 points at low speed, 2040 points at high speed.
*Comptaible with multiple IC type: *TM1803/TM1804/TM1809/HL1903/LPD6803/WS2811/UCS1903/SK6812, etc.
*IMPORTANT: When place the order, please specify voltage and IC type need for the pixel
